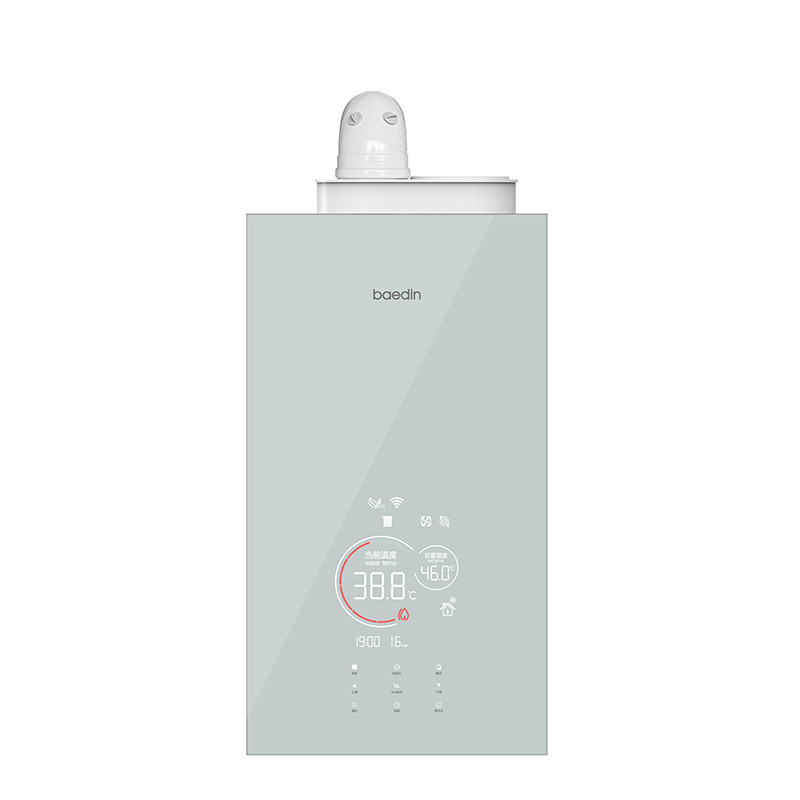

Wall Hung System Gas Boiler

This China Wall Hung System Gas Boiler, manufactured by Baedin's manufacturer, is equipped with an intelligent climate compensation system and precise proportional combustion regulation technology. It can dynamically adjust the heating output according to the outdoor temperature, eliminating the waste of unnecessary energy consumption. The unique diamond-shaped waterway combined with a composite heat exchange structure ensures smooth water circulation and inherent anti-scaling advantages. Coupled with the minimalist three-interface bottom piping design, it significantly reduces the installation difficulty and long-term operation and maintenance costs. The entire machine is equipped with a complete set of multiple safety protection mechanisms, featuring high stability, high adaptability, and high cost-effectiveness. It has become the preferred equipment for small-sized households and small-scale commercial centralized heating.

To meet varying floor areas and heating load requirements, this series offers six power configurations: 20 kW, 24 kW, 28 kW, 32 kW, 36 kW, and 40 kW. The range comprehensively covers small apartments, medium-sized residences, large flats, and large villas. Models of 36 kW and above come standard with a dual-pump design, ensuring even heat distribution and stable circulation across large spaces or complex piping systems.

Core selling points

1. Pure heating exclusive structure, significant upgrade in cost performance

The entire machine eliminates all components for domestic hot water supply, concentrating all heat on space heating, eliminating the potential faults caused by redundant functions. Compared to a dual-purpose boiler with the same power, the purchase cost is reduced by 15%-20%, the structure is more concise, and the failure rate is lower. It precisely matches the heating needs without generating functional premium.

2. Rhombic anti-scaling waterway + composite heat exchange system

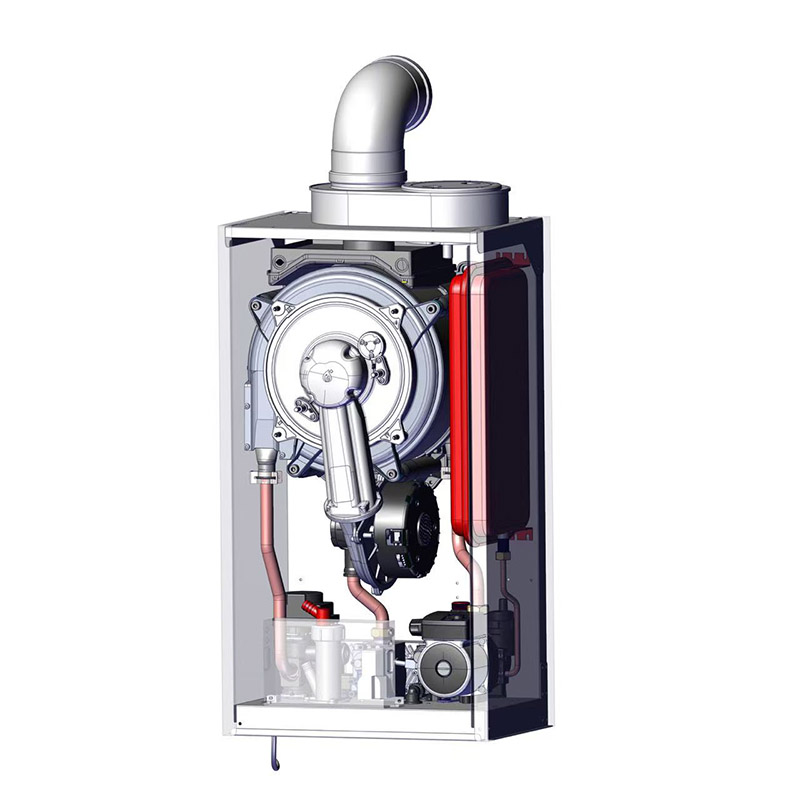

The innovative rhombic waterway design optimizes the water circulation path, ensuring smooth flow without dead corners, effectively inhibiting water scale accumulation from the source and maintaining heat exchange efficiency over time. The removal of the vulnerable three-way valve and plate heat exchanger eliminates the need for frequent disassembly and cleaning of the plate exchanger, significantly extending the maintenance cycle and making daily operation and maintenance more convenient and cost-effective.

3. Intelligent climate compensation, precise energy-saving temperature control

Equipped with outdoor temperature sensing compensation technology, it can automatically adjust the heating power according to the changes in outdoor temperature, avoiding energy waste caused by constant temperature operation. Combined with the proportional gas valve, it can achieve precise regulation within a 30-80℃ temperature range, with stable and controllable flame output, suitable for different terminal heating temperature requirements, providing constant comfort and significant energy-saving effects.

4. Minimalist three-interface design, efficient installation and maintenance

The bottom of the machine only retains the heating inlet, heating return, and gas interfaces, eliminating the need for complex cold and hot water pipelines, making the construction process simple and highly adaptable. Standardized with a manual drainage valve and a 6-10L large-capacity expansion tank, it is suitable for different volume heating systems, making daily maintenance, drainage, and maintenance operations more convenient.

5. Thirteen comprehensive all-round safety protection, trouble-free operation

The Wall Hung System Gas Boiler is equipped with thirteen safety mechanisms including residual flame protection, ignition failure protection, over-temperature reverse wind protection, water shortage prevention and freezing, pump lock prevention, gas valve adhesion prevention, and automatic pressure relief, covering all scenarios from start-up, operation, low temperature, and faults, ensuring the long-term stable and safe operation of the equipment around the clock.

Application scenario

1. Residential home heating

2. Commercial store and office environment

3. Small workshops and storage spaces

4. Old house heating renovation project

Technical Parameter

FAQ

Q1: What are the core differences between a single-system heating furnace and a dual-purpose furnace?

Wall Hung System Gas Boiler has no function for domestic hot water, and it has a simpler pure heating structure, lower failure rate, and more affordable price. It is specifically designed for scenarios that only require centralized heating, eliminating the need for unnecessary functional overcharging.

Q2: Can it be compatible with both underfloor heating and radiator heating?

It supports dual-terminal compatibility. The 30-80℃ wide temperature control range can meet the different working conditions of underfloor heating at low temperatures and radiator heating at high temperatures. It is suitable for the vast majority of home heating systems.

Q3: Where does the actual advantage of the diamond-shaped waterway lie?

The water flow circulation has no dead corners, is less likely to accumulate water scale and impurities, has no decline in heat exchange efficiency over a long period of use, significantly reduces blockage and failure, and reduces the frequency of later cleaning and maintenance.

Q4: How does the climate compensation function save energy?

It can automatically adjust the power according to the outdoor temperature, avoiding ineffective energy consumption from fixed power operation. The energy-saving effect is particularly prominent in seasonal conditions and is more energy-efficient in the long term.

Q5: Is the installation process complex and does it require high site conditions?

It only requires three sets of bottom interfaces, no hot water pipelines, simple wiring, short construction period, and wall-mounted design does not occupy floor space, suitable for the vast majority of home and small commercial sites.

Q6: Is the later maintenance and upkeep troublesome?

The removal of the prone-to-blockage plates and three-way valves is easier, with fewer wear parts and a more stable structure. There is no need for frequent disassembly and cleaning. Daily maintenance only requires simple inspection and drainage, with extremely low operation and maintenance costs.

Q7: Can the equipment run continuously for a long time?

It supports 24/7 continuous constant temperature operation. Combined with thirteen layers of safety protection, it has strong anti-fault and anti-decay capabilities, suitable for long-term uninterrupted heating in households and commercial spaces.
