Fully Premixed Condensing Gas Boiler

Unlike conventional boiler models, this Fully Premixed Condensing Gas Boiler produced by Baedin factory applies the net calorific value calculation criterion, which does not take the latent heat carried by water vapor in flue gas into account. The unit recovers and reutilizes the latent heat of vaporization released through combustion and condensation reactions, allowing its thermal efficiency to break the 100% threshold effortlessly.
The heating system’s return water temperature is the key factor influencing the unit’s heat efficiency. For sustained high-efficiency and reliable long-term running, installation of an outdoor temperature probe is advised to keep the return water at a constant low temperature. Condensing heating equipment can only operate at its peak performance when the return water temperature remains under the 50°C dew point.

Application Scenarios & Core Competitive Advantages Applicable Heating Systems

Compatible with two mainstream heating terminals: conventional radiator heating and low-temperature underfloor heating. When matched with underfloor heating, its energy-saving effect is maximized, cutting total gas consumption by up to 30%.
Three Core Competitive Strengths
Industry-leading ultra-high energy efficiency Peak thermal efficiency reaches 109.8%, 15%–30% lower gas consumption than ordinary wall-mounted boilers; maintains over 105% efficiency under 30% low load, realizing energy saving in both heating season and hot water off-season.
Integrated full premixed condensing hot water technology Adopts imported metal fiber full premixed burner + double heat exchange structure, ultra-wide power modulation range, stable instant hot water with tiny temperature fluctuation, meets simultaneous hot water demand of multiple bathrooms and kitchens.
Ultra-wide power adjustment range & flexible matching 6 power specifications covering small apartments to large villas; high-power models equipped with dual circulating pumps for large flow and uniform pipeline heat distribution, optional circulating hot water tank for centralized large hot water supply.
Eco-friendly Low-carbon Performance
Low-temperature condensing operation reduces flue exhaust temperature and heat waste significantly. Full premixed surface combustion suppresses thermal NOx generation, cutting NOx emissions by 80% and CO emissions by 90% compared with standard boilers, meeting global Class 5 low-nitrogen environmental protection standards. Baedin persists in developing green low-carbon heating equipment to reduce carbon footprint and air pollution.

Product Parameters & Structural Design Highlights

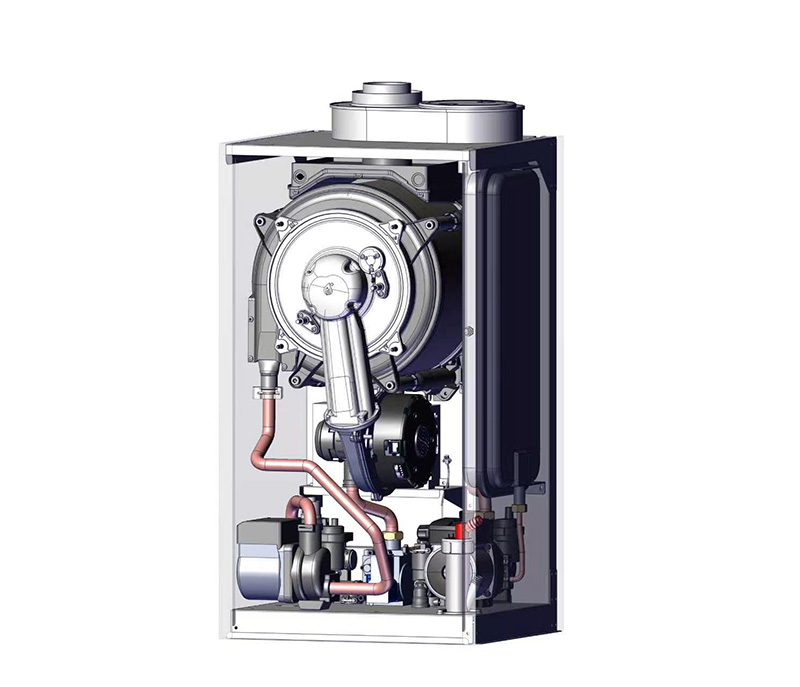

Manufactured in accordance with German manufacturing benchmarks and equipped with entirely imported core components, this central heating gas boiler combines space heating and domestic hot water production into a single all-in-one device. Six power ratings are offered: 20KW, 24KW, 28KW, 32KW, 36KW and 40KW, which can satisfy heating requirements for buildings of all dimensions. Models rated 32KW, 36KW and 40KW are pre-installed with twin circulation pumps as standard, supplying abundant water flow and uniform heat dispersion throughout heating pipe networks.
Outfitted with state-of-the-art full premixed combustion technology, the boiler reaches a maximum thermal efficiency of 109%, cutting operational expenses by 15% to 30% versus conventional wall-hung boilers. Its integrated DC variable frequency system reduces repeated startup and shutdown cycles under low-load or non-heating conditions, realizing smart energy saving.
Adopting high-accuracy multi-point temperature regulation technology, the unit generates steady hot water in 17±2 seconds, with temperature deviation controlled below 0.5°C. Its internal rapid heating module and highly responsive temperature sensors provide instant hot water with constant outlet temperature, creating a smooth and pleasant hot water usage experience for users.

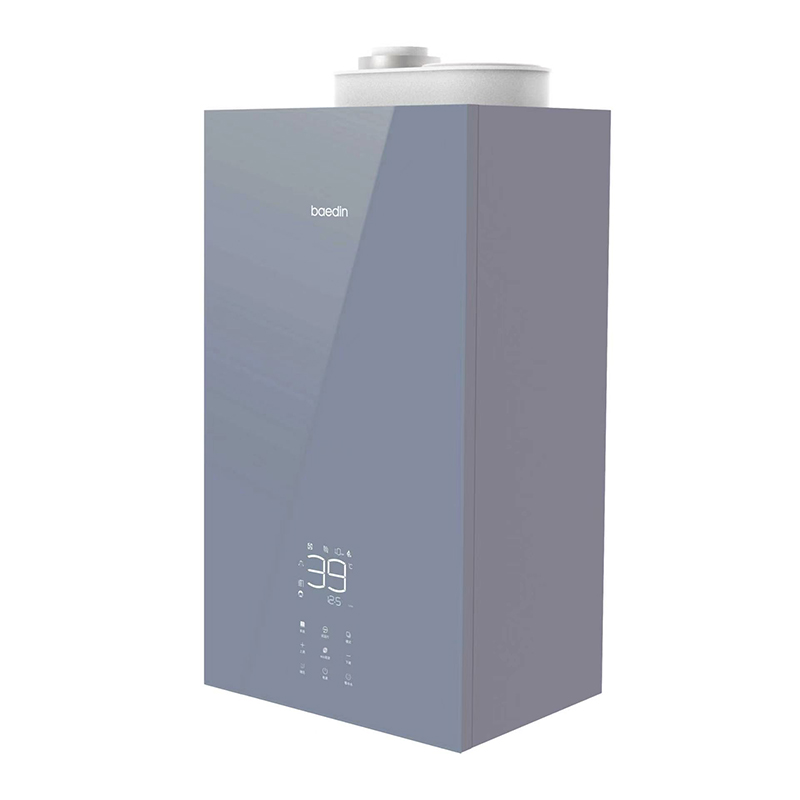

The unit is fitted with top-grade tempered glass panels resistant to temperatures up to 800°C, featuring an elegant look, excellent anti-scratch performance and effortless daily upkeep. A spacious 19cm×17.5cm white backlit LED monitor shows real-time operational parameters and fault warning codes with crystal clarity. Customers can opt for an extra variable-speed automatic circulation pump to match diverse heating pipeline flow requirements. It also supports connection to a coil hot water storage tank to fulfill high-volume hot water demands of big residences and villas.

List of Imported Core Components

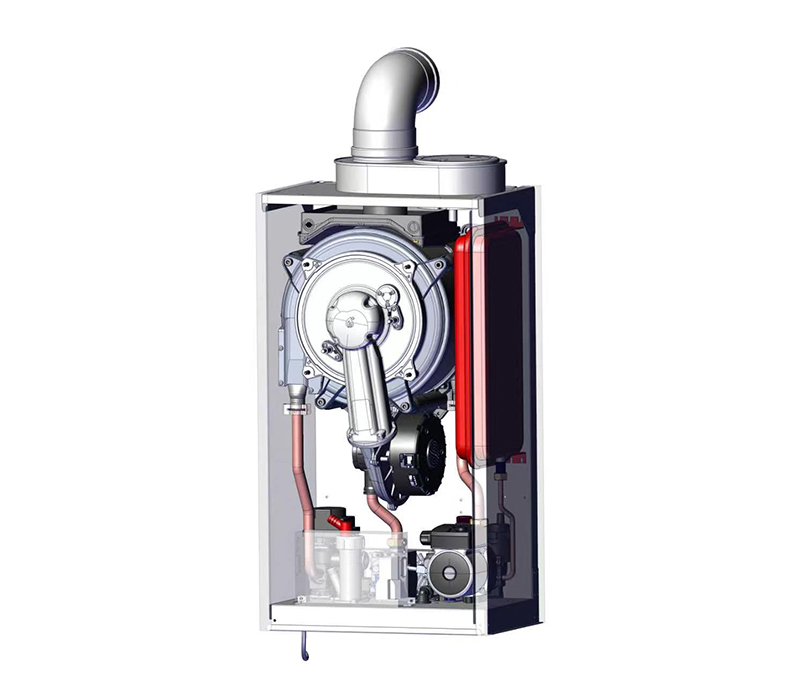

Italian imported primary heat exchanger, imported ceramic fiber combustion burner, imported DC variable-frequency premixing fan, Italy-made SIT gas regulating valve, proprietary external air filter, memory alloy water passage, stainless steel plate secondary heat exchanger, heating expansion vessel, 800°C heat-resistant tempered glass / metal decorative panel, pressure gauge paired with water pressure sensor, 3-bar overpressure safety relief valve, manual drain tap, water level induction sealing assembly
