Wall Mounted Gas Boiler

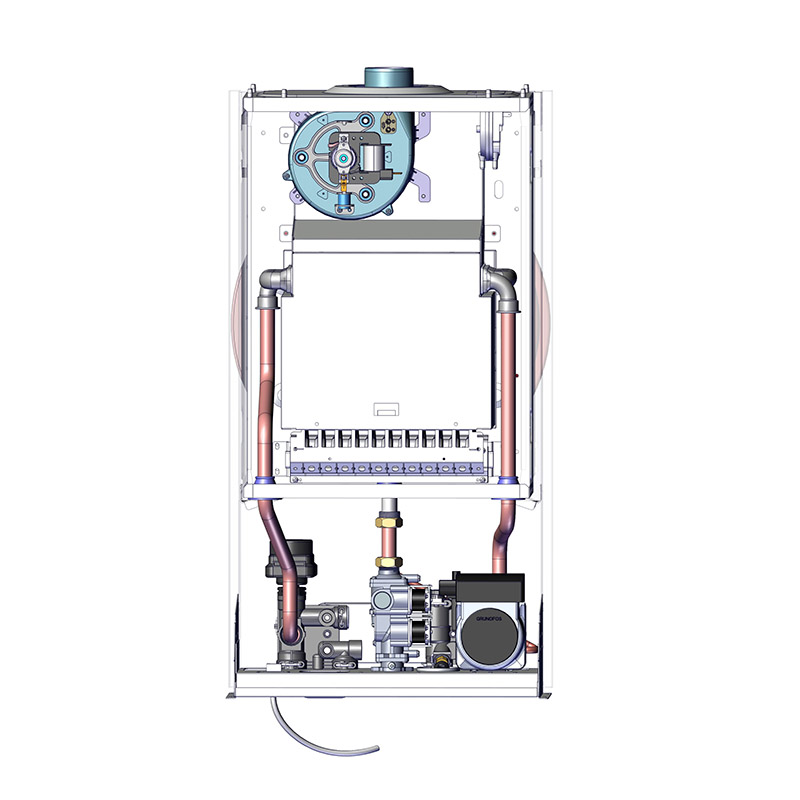

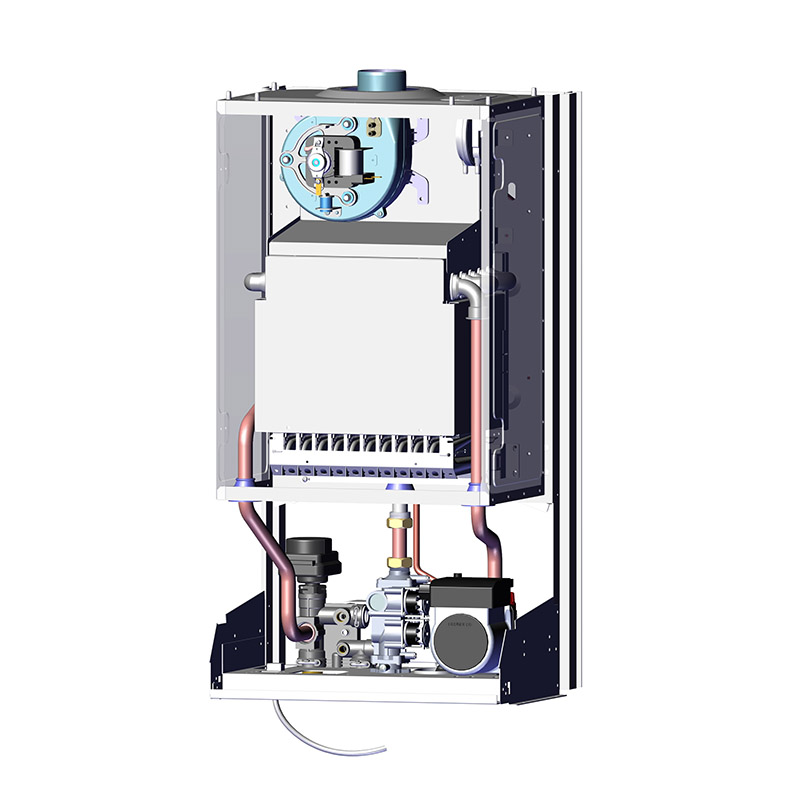

Manufactured by China Baedin wall-hung boiler manufacturer, the Wall Mounted Gas Boiler adopts a professional dual heat exchanger structure. Equipped with a stainless steel plate heat exchanger and thimble three-way valve control system, it enables fully independent operation of heating and domestic hot water systems with high heat exchange efficiency and stable constant water temperature. Adopting proportional gas regulation, high-precision NTC temperature control and multiple protection technologies, and equipped with a stainless steel burner and a full set of high-quality core accessories, the boiler features stable operation, excellent durability and wide adaptability, making it a high-performance household device for whole-house heating and constant-temperature hot water supply.
The Wall Mounted Gas Boiler is available in multiple power ratings, including six specifications: 20KW, 24KW, 28KW, 32KW, 36KW and 40KW. It can accurately match the heating area and hot water demand of different house types, fully adapting to all household application scenarios.
Product Application
Integrating whole-house heating and constant-temperature domestic hot water supply, the Wall Mounted Gas Boiler is suitable for small apartments, large flats, villas and various other residential spaces. It adapts to diverse installation environments, climatic conditions and frequent daily use. Boasting precise temperature control, high heat exchange efficiency, stable operation and comprehensive safety protection, it is equipped with practical functions such as anti-electromagnetic interference and pump anti-lock protection. It can meet the demands of long-term and stable heating and hot water supply for families.
Technical Parameter
| boilers | unit | L1PB20 | L1PB24 | L1PB28 | L1PB32 | L1PB36 | L1PB40 |
| Maximum heat input | KW | 20.0 | 24.0 | 28.0 | 32.0 | 36.0 | 40.0 |
| Minimum heat input | KW | 8.8 | 9.6 | 11.2 | 12.8 | 14.4 | 16.0 |
| Maximum heat output 80/60℃ | KW | 18.0 | 21.8 | 25.2 | 28.8 | 32.4 | 36.0 |
| Minimum heat output 80/60℃ | KW | 7.7 | 8.4 | 9.8 | 11.2 | 12.6 | 14.2 |
| Power nature |
|
~220v 50Hz | ~220v 50Hz | ~220v 50Hz | ~220v 50Hz | ~220v 50Hz | ~220v 50Hz |
| Efficiency at max output | % | 90.2 | 91.1 | 90.1 | 90.1 | 90.7 | 89.8 |
| Efficiency at 30% | % | 88.7 | 88.7 | 88.7 | 88.7 | 88.7 | 88.7 |
| Expansion vessel capacity | Litres | 6 | 6 | 6 | 8 | 8 | 10 |
| Range of CH temperatures | ℃ | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 |
| Range of DHW temperatures | ℃ | 30-60 | 30-60 | 30-60 | 30-60 | 30-60 | 30-60 |
| DHW production △t=25℃ | I/min | 10.3 | 12.0 | 14.0 | 16.0 | 18.0 | 20.0 |
| Minimum DHW flow rate | Vmin | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Minimum DHW pressure | Bar | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| Minimum working temperature | ℃ | 1 | 1 | 1 | 1 | 1 | 1 |
| Dimensions(HxW×D) | mm | 720×400×325 | 720×420×325 | 720×490×340 | |||
| Grade of protection |
|
IPX4D | IPX4D | IPX4D | IPX4D | IPX4D | IPX4D |
Key Product Features
Dual Heat Exchanger Design for Constant & Comfortable
Temperature Adopting a separate dual heat exchanger structure, the heating system and domestic hot water system operate independently without mutual interference. The high-quality stainless steel plate heat exchanger delivers high heat exchange efficiency and superior thermal conductivity. It maintains stable and uniform hot water temperature, effectively solving the problem of fluctuating water temperature and bringing a better bathing experience.
Premium Materials for Long Service Life
The stainless steel burner features high temperature resistance, corrosion resistance and anti-aging performance, ensuring even and stable flame combustion and extending the overall service life of the equipment. All core components are manufactured to high standards for reliable long-term operation.
Complete Functions & Reliable Operation
Built with anti-electromagnetic interference capability, it works well under complex household power environments and prevents operational faults caused by signal interference. The circulating pump anti-lock function ensures normal startup even after long-term shutdown and avoids pump seizing, greatly enhancing the operational stability of the unit.
